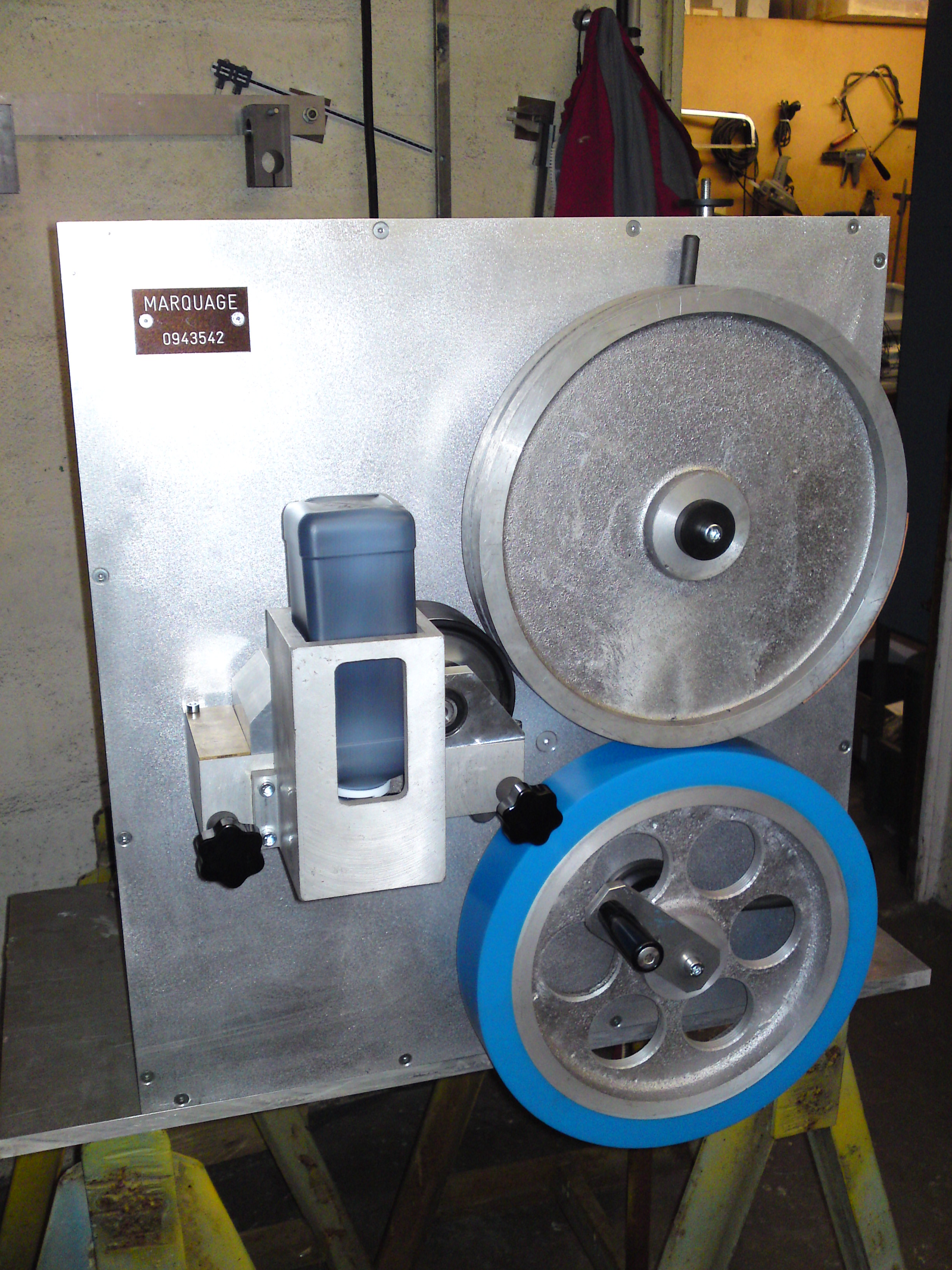

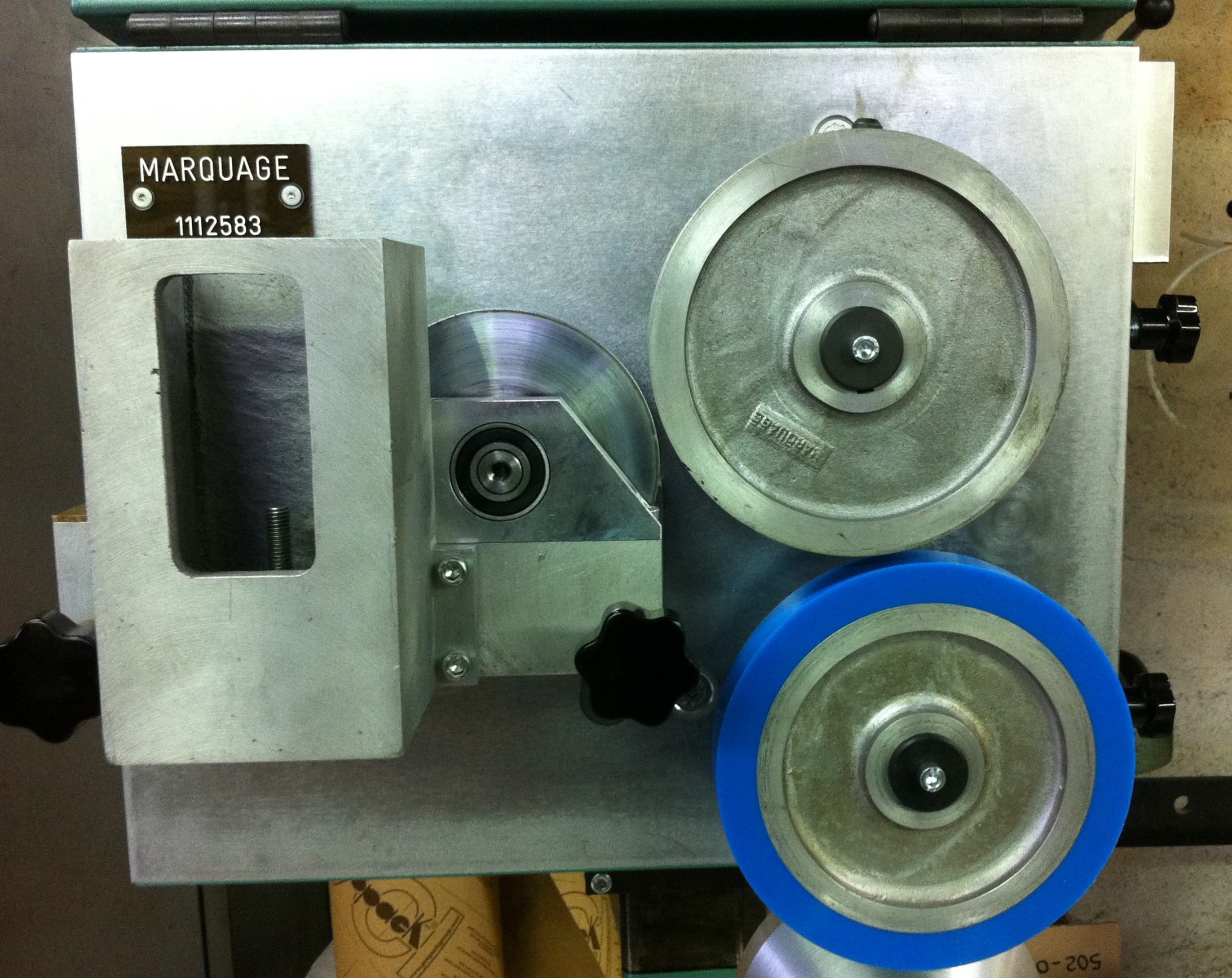

OFS 500 ; OFS 1000

PRINTER FOR STEEL, METAL, RUBBER, PLASTIC, GLASS, FABRICS and other materials.
Offset marking on the production line or in retake.

TECHNICAL SPECIFICATIONS

  • Three mechanically synchronized wheels with anti-inversion bearings (an inking roller attached to an ink container, exchangeable, a character-carrying wheel and a drive wheel to compose the text to mark).
  • Printing metres of development possibility: 500 mm or 1000 mm (more on demand).
  • Marking on the top or the bottom, vertically and horizontally.
  • Height of characters on one or several lines up to 100 mm (more on demand).
  • Maximum speed of printing: 4 metres / second.
  • Movement by friction with the product to mark (synchronization on demand).
    On demand: Mechanization or motorization with electronic variator of speed or stops with fixed points for single, repetitive, continuous or discontinuous marking (measuring).
  • Delivered with or without a hinged cover (security and dustproof).
  • Evaporation proof ink container.
  • Rapid dismantling of the ink container (for quick cleaning or quick color change, etc), without tools.
  • The ink container is available with remote control automatic refilling (on demand).
  • The use of semi-thick, quick-drying marking material (ink) is possible.
  • The use of UV ink for immediate drying is possible.

DELAY

Within 1 to 2 months of order confirmation receipt.

OPTIONS

  • Automatic punch.
  • A printer-rest or a complete frame.
  • System to guide the product under the marker.
  • Automatic height setting or automatic offline system.

In order for us to give you an estimate suited to your needs, do not hesitate to fill our online technical form or to send us your specifications via email.
