DE 120

ETCHING MARKING ON GLASS, STEEL, PLASTIC, ETC.

TECHNICAL SPECIFICATIONS

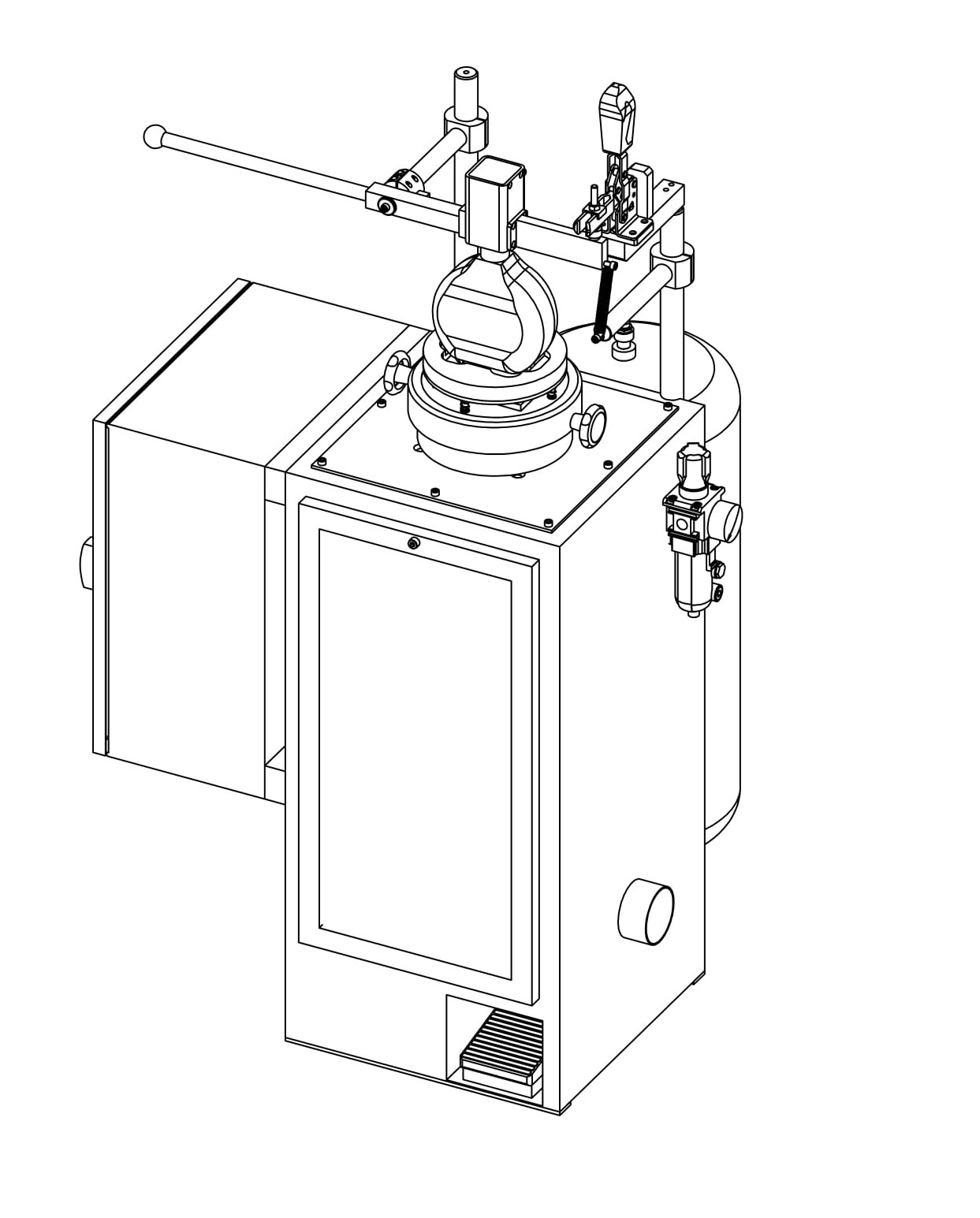

Presented in three elements which can be collected on a pedestal support or sold separately for assembly on manufacturing line.

• 1 Engraving box containing the projection pulsator, a filter, a preheating device, the abrasive, a stencil support plate (on demand: fast fastening with stamping machine), and a security screen.
• 1 Electric masterswitch with temporization for marking depth setting. An impulse activating the marking cycle is communicated, either by the pedal of command, or by the product to mark being detected.
• 1 Compressed air tank set to the pressure of use which is determined according to the desired quality of engraving (between 4 and 7 bar).

This model can make an engraving with a diameter of 80 mm or an etching with a diameter of 120 mm.

NOTE

• For an engraving with a maximum diameter of 40 mm, the DE 40 model is available. Its technical characteristics and its size are identical to the DE 120, however it doesn't have an air tank.
• For rectangular or big engravings, a special machine with mobile projection heads can be supplied. The marking operation is automatically performed according to a cycle determined by the shape of the product to mark.
• For the identification, on production lines or storage, of heavy products, we can supply an etching machine by pulsator. The recycling of the abrasive is done by a special flexible tube.
• The engraving, which can be performed on fragile or thin pieces, is done in 3 or 5/10th of a second.
• The stencils we supply can be of your texts, logo, drawings, etc.
• The abrasive was created for an extensive use and is very resistant.
• Double face adhesive and rubber seal are supplied for proper use. Putting the stencil on the support must be done with care.

In order for us to give you an estimate suited to your needs, do not hesitate to fill our online technical form or to send us your specifications via email.
